HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck
HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck

Großes Bild :  HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck

Produktdetails:
Herkunftsort: CHINA
Markenname: Sinotruk Howo
Zertifizierung: ISO CCC
Modellnummer: ZZ1257N4047W
Dokument: HOWO 6X4 concrete truck.pdf
Zahlung und Versand AGB:
Min Bestellmenge: 1 Einheit
Preis: $46500 unit
Verpackung Informationen: Kein Nackt
Lieferzeit: 30 Tage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: EINHEIT 100 PRO MONAT

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck

Beschreibung
Antriebsrad: 6x4 Kraftstofftyp: Diesel
Zustand: Neu Bruttofahrzeuggewicht: 25000
Pferdestärke: 351 - 450 PS Emissionsstandard: Euro 2
Übertragung: HW19710 Farbe: Anfrage des Kunden
Hervorheben:

HOWO 6x4 concrete mixer truck

,

371HP concrete mixing truck

,

10 wheels concrete mixer truck

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck

1. products description

Product Parameter
More parameters
Brand Name
SINOTRUK –HOWO
more
Truck Model
ZZ1257N3841W
/
Geometric Volume
12 CBM
6,8,9,10,12,14,16,18
color
option
option
Water Tank Volume(L)
400
Water Tank Volume(L)
Engine
WD615.47, Euro 2
Euro 3 ,Euro 4,Euro 5
Wheel base (mm)
3800+1350
customization
Overall Dimension (mm)
8560x2496x3048
customization
Clutch
SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
Transmission
HW19710, 10 forward and 2 reverse
Ratio: 4.42 4.8 5.73
Front Axle
New HF9 series, with drum brake system
Rear Axle
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Steering
ZF8118, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Wheels&Tyres
Rims: 8.5-20,10 hole-steel
Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20
Driver'sCab
HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds,
adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air
conditioner
Cargo body
American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color
consistent with the cab, front and rear lamp cover, other standard

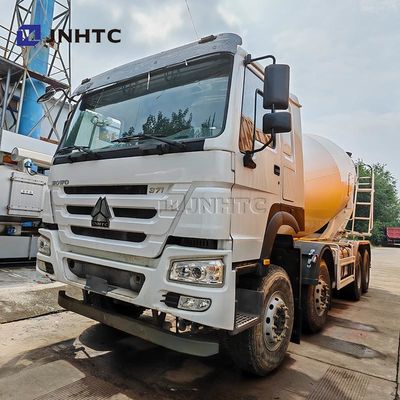

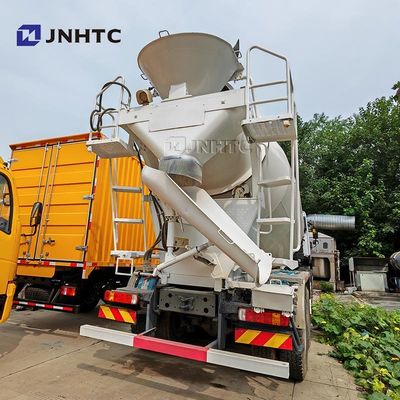

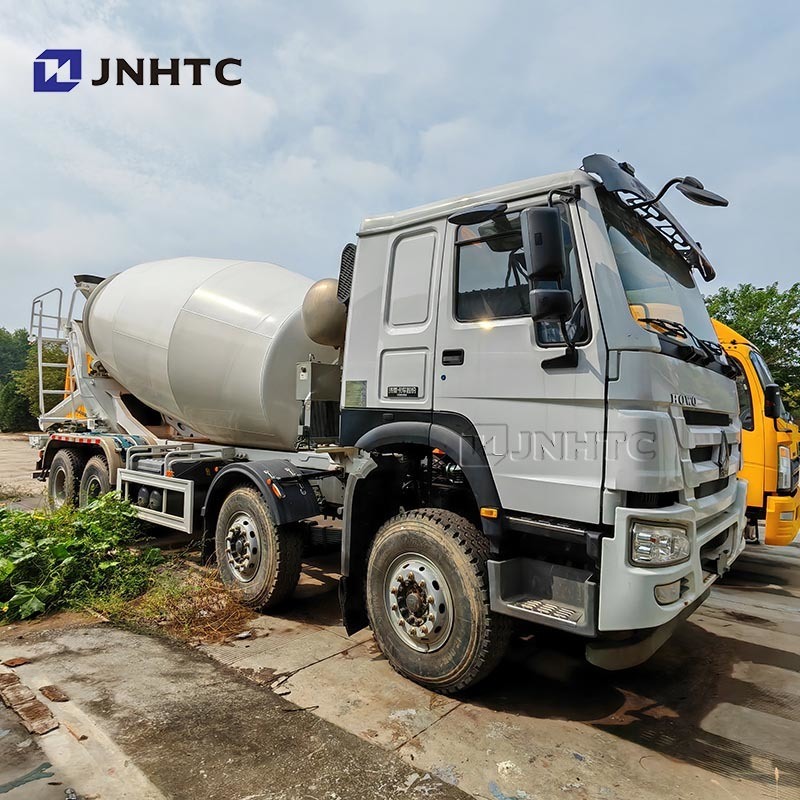

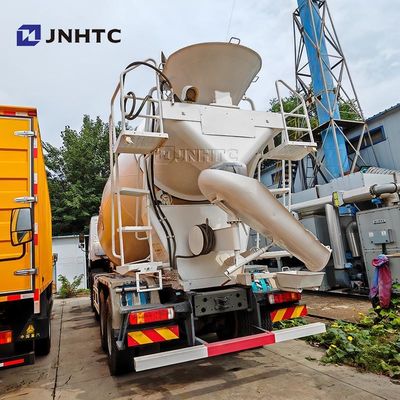

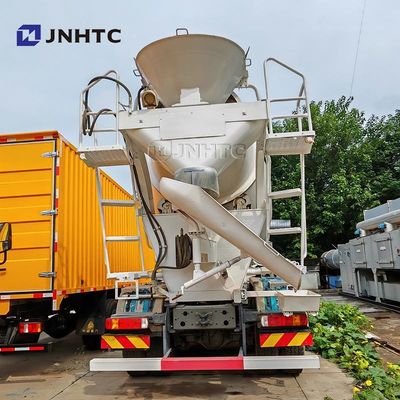

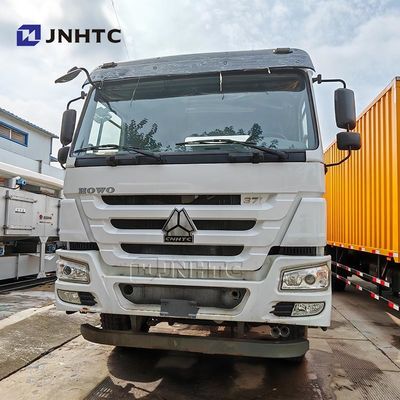

2. Products show



Mixer truck is a special vehicle used for transporting and mixing concrete, which is usually composed of a

mixing cylinder, a drive system, a feeding and unloading device. The mixer drum is the core part of the mixer,

which is equipped with spiral blades, which can constantly mix concrete during transportation to prevent

concrete from solidifying. The feed port of the mixer is usually located at the top, and the discharge port is

located at the rear, and the discharge can be achieved by controlling the opening and closing of the discharge

door. The mixer is widely used in construction sites, road construction and other fields, it can transport concrete

from the mixing station to the construction site, and ensure the quality and uniformity of concrete. Some mixers

may also be equipped with remote controls or other control devices that allow the operator to take control away

from the vehicle.



HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 0HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 1HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 2HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 3





3. Customer visit

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 4

4. Company Profile

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 5

HOWO Concrete Mixing Truck 6x4 10 Wheels 371HP Concrete Mixer Truck 6
